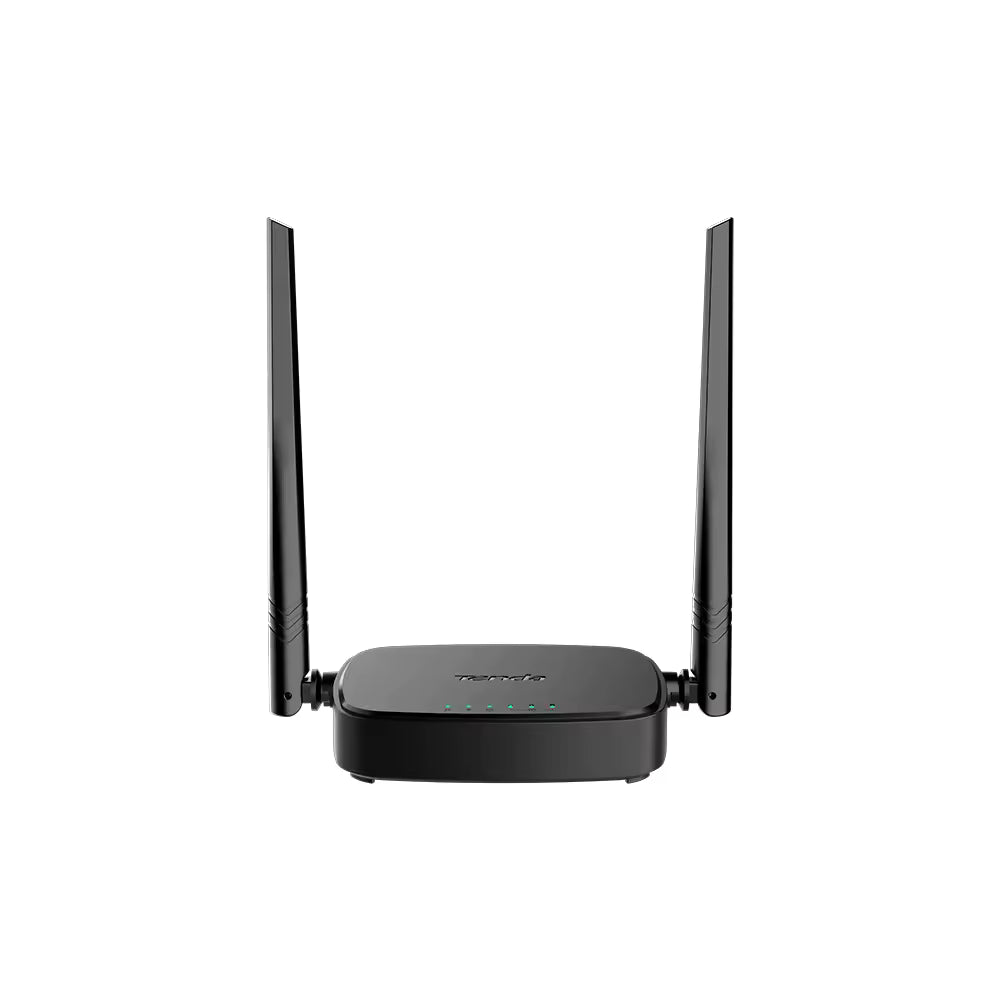

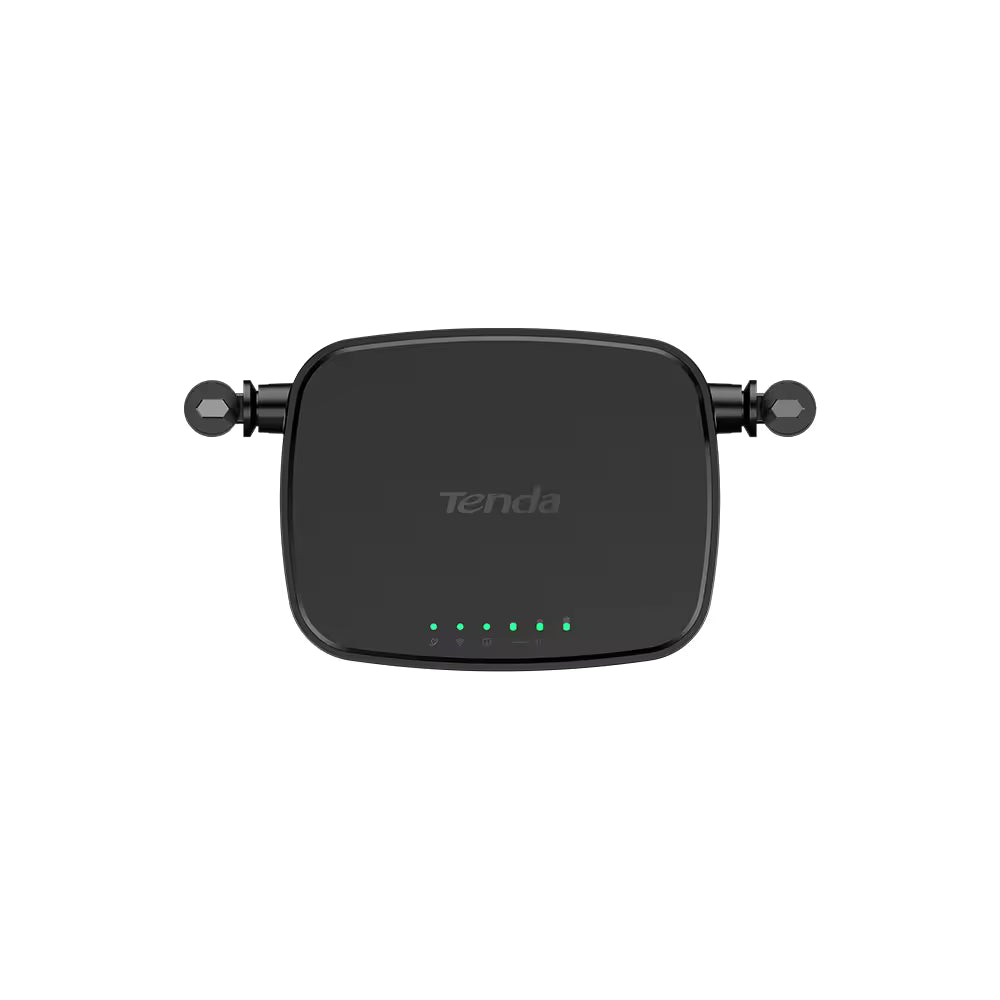

TENDA 4G LTE Router 4G05 N300 Wi-Fi

N300 Wi-Fi 4G LTE Router

### Hardware
4G Cartgory:
 LTE CAT.4
4G/3G standards:
 FDD LTE,TDD-LTE,WCDMA
Working band:
 FDD-LTE: B1/B3/B5/B7/B8/B20/B28AB
TDD-LTE: B38/B40/B41
WCDMA: B1/B5/B8
Max 4G speed:
 DL:150Mbps UL:50Mbps
Wi-Fi standards:
 802.11b/g/n
Wi-Fi frequency:
 2.4GHz
Wi-Fi speed:
 300Mbps
Wi-Fi transmit Power:
 up to 20dBm

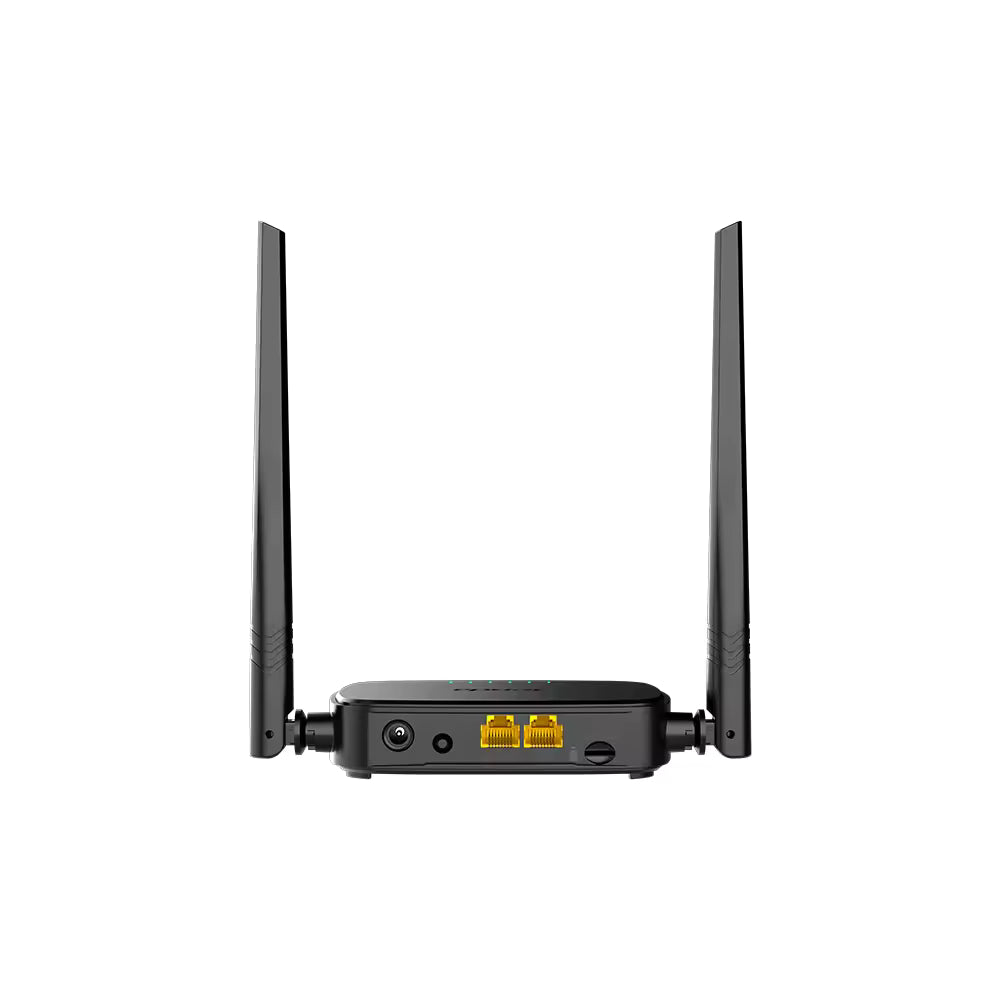

Interface:
 1 × 10/100 Mbps LAN/WAN Port
1 × 10/100 Mbps LAN Port
1 × Nano SIM Card Slot
Button:
 WPS/Reset
Antennas:
 2 External 4G/3G Antennas
2 Internal Wi-Fi Antennas
LED indicators:
 Internet
Wi-Fi
LAN
4G/3G Signal strength(3 Bars)
Dimensions（L*W*H）:
 116*95*26mm
Weight:
 About  134g
Power supply:
 Power adapter:Input power AC 100V-240V 50/60Hz
Output power:DC9V==0.6A、5V==1A

### Software
WAN Type:
 4G/3G or Wired
Support Failover
Wi-Fi functions:
 Wi-Fi name&Wi-Fi key
Channel & Bandwidth
WPS
Wi-Fi security:
 WPA-PSK, WPA2-PSK, WPA/WPA2
Software features:
 APP/WEB
DHCP Server
Firewall
QOS
Upgrade firmware from local or OTA
IPV4/IPV6

### Certifications
Certifications:
 CE
ROHS
SIRIM
NBTC
Postel

### Working Environment
Temperature:
 Operating Temperature: -5°C~45°C.
Storage Temperature: -30°C~70°C
Humidity:
 Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing

### Package Contents
Package lists:
 1 * 4G LTE Router
1 * Ethernet cable
1 * Power adapter
1 * Quick Installation Guide
